Product Description
Track Width
- Fits all Caterpillar 299C undercarriages
- SKU: B450x86x60SB-CR299C

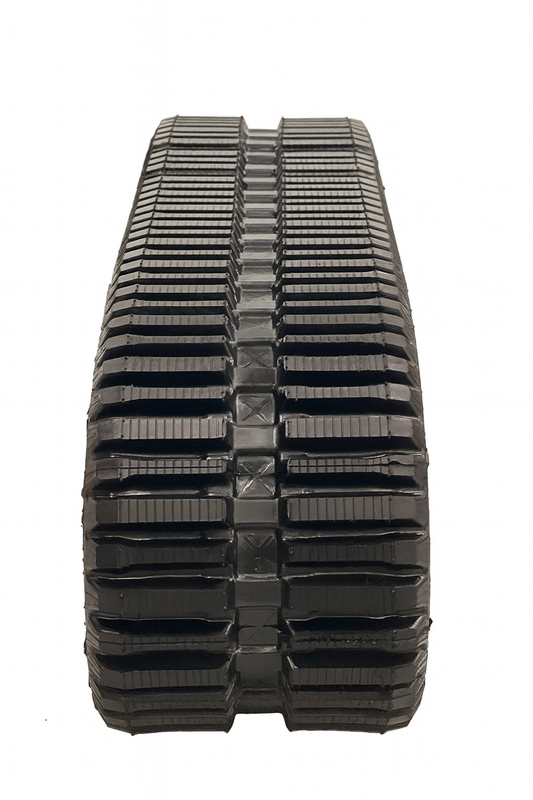

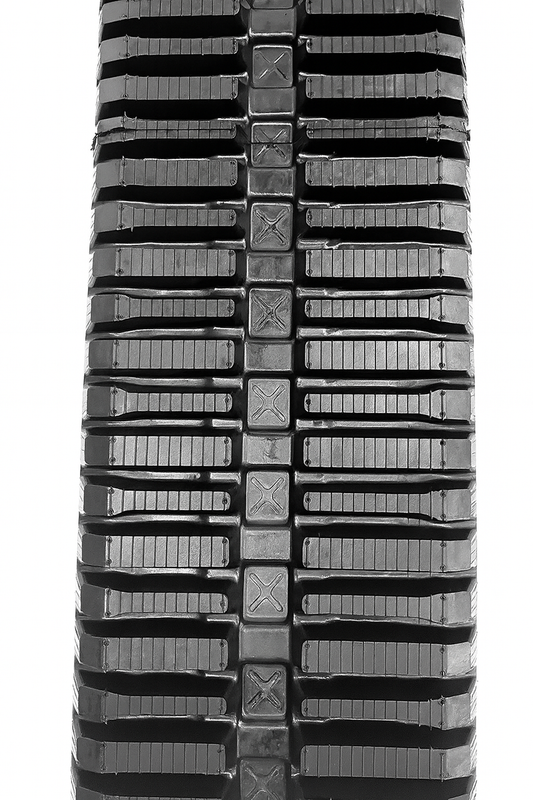

Split Bar Tread — Is It Right for Your Work?
| Pattern | Best Used For |
|---|---|
| Bar | Flat terrain · large ground contact · stability on firm surfaces |
| Block | General purpose · hardpack · dirt · long pavement runs |
| C-Lug | Mixed terrain · grading · site work · on/off road · concrete & dirt |
| Split Bar ✔ | Bidirectional traction · shock absorption · smooth ride on varied ground |
| Turf | Lawns · landscaping · minimal ground disturbance |
| Z-Lug | Steep grades · snow · ice · maximum traction applications |
The Split Bar pattern is engineered for operators who need reliable traction in both forward and reverse. The split design flexes more than a solid bar, improving ground contact and absorbing vibration on uneven terrain. A good middle ground between the smooth ride of a bar pattern and the grip of a lug pattern.
Know Your Machine: Caterpillar 299C Undercarriage Facts
The 299C is a vertical-lift Caterpillar compact track loader with a 4,150 lb rated operating capacity. At approximately 10,730 lbs operating weight, it delivers strong pushing and lifting performance for landscaping, site prep, grading, and utility work.
Track Dimensions
| Size | Width | Pitch | Links | SKU |
|---|---|---|---|---|
| 450mm Width (450×86×60) | 450mm (17.7") | 86mm | 60 | B450x86x60SB-CR299C |
