Product Description
Track Width
- Fits all Bobcat T140 undercarriages
- SKU: B320x86x45C-BTT140

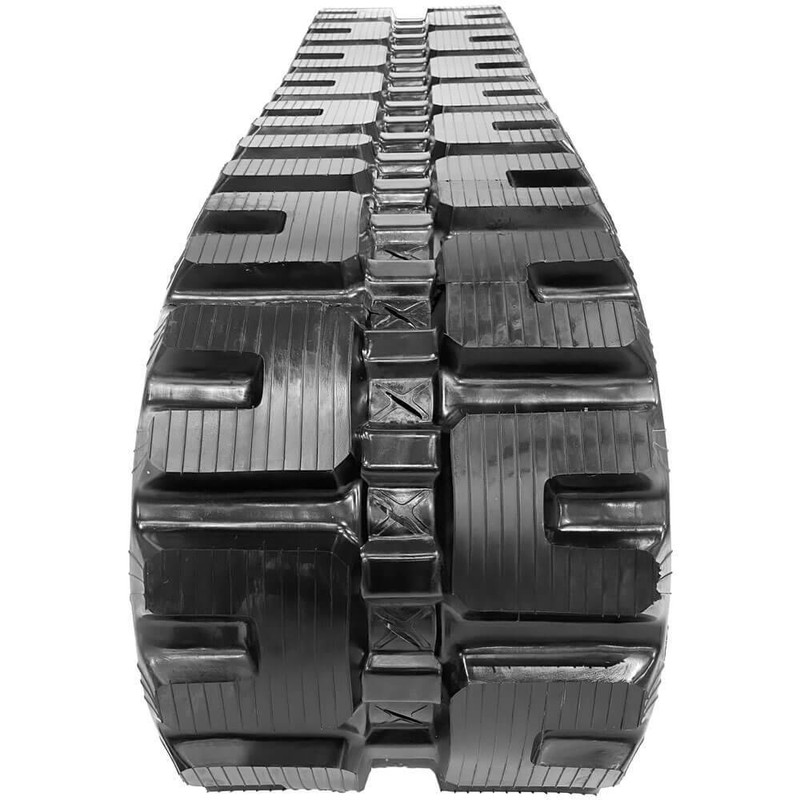

C-Lug Tread — Is It Right for Your Work?
| Pattern | Best Used For |
|---|---|
| Bar | Flat terrain · large ground contact · stability on firm surfaces |
| Block | General purpose · hardpack · dirt · long pavement runs |
| C-Lug ✔ | Mixed terrain · grading · site work · on/off road · concrete & dirt |
| Split Bar | Bidirectional traction · shock absorption · smooth ride on varied ground |
| Turf | Lawns · landscaping · minimal ground disturbance |
| Z-Lug | Steep grades · snow · ice · maximum traction applications |
The C-Lug is the most versatile pattern for operators doing mixed work — think landscaping, excavation, building sites, and utility work where you're moving between gravel, dirt, and pavement. The “C” shaped notches create more edges than a block tread, giving better traction on softer ground without sacrificing the smooth ride needed on concrete.
Know Your Machine: Bobcat T140 Undercarriage Facts
The T140 is a mid-frame Bobcat compact track loader with a 1,400 lb rated operating capacity and a single standard track width of 320mm (12.6"). At approximately 7,450 lbs, it delivers solid lifting and pushing performance for landscaping, site prep, and utility work.
What's Inside the Track
| Component | Specification | Why It Matters |
|---|---|---|
| Iron Cores | Drop-forged steel embeds · pitch-spaced | Maintain track shape · resist deformation under load · engage sprocket cleanly |
| Steel Cords | Acid-washed · continuous cord layer | Carry tensile load · prevent stretching · hold pitch dimension over time |
| Rubber Compound | Wear-resistant · premium bonding agent | Protects cords from moisture · bonds all layers · absorbs impact on hard surfaces |
| C-Lug Tread | C-shaped notches create more biting edges | Self-cleaning in mud. Smooth on pavement. |
| Lug Height | ~1" nominal new depth | Replace when worn below ⅓ remaining |
Track Dimensions
| Size | Width | Pitch | Links | SKU |
|---|---|---|---|---|
| 320mm Width (320×86×45) | 320mm (12.6") | 86mm | 45 | B320x86x45C-BTT140 |
All Tread Patterns Available for the T140
Sold individually. Free shipping.
