Product Description
Track Width
- Fits all Bobcat T770 undercarriages
- SKU: B450x86x55NMSB-BTT770
Non-Marking Split Bar Tread — Is It Right for Your Work?
| Pattern | Best Used For |
|---|---|
| Bar | Flat terrain · large ground contact · stability on firm surfaces |
| Block | General purpose · hardpack · dirt · long pavement runs |
| C-Lug | Mixed terrain · grading · site work · on/off road · concrete & dirt |
| Split Bar | Bidirectional traction · shock absorption · smooth ride on varied ground |
| Turf | Lawns · landscaping · minimal ground disturbance |
| Z-Lug | Steep grades · snow · ice · maximum traction applications |
Standard black rubber versions also available. See standard patterns →

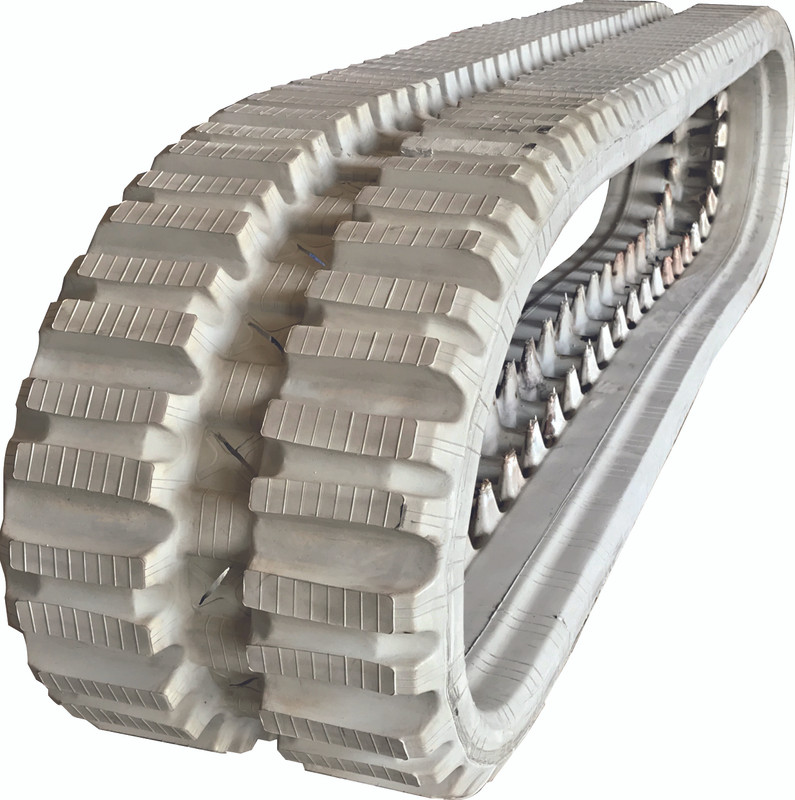

The Non-Marking Split Bar combines the bidirectional traction and smooth ride of the Split Bar pattern with a white rubber compound that won't mark finished surfaces. Perfect for indoor construction, renovations on existing floors, and warehouse environments where both traction and surface protection matter.
Know Your Machine: Bobcat T770 Undercarriage Facts
The T770 is Bobcat's highest-capacity standard-frame CTL — 92 hp with a 3,475 lb rated operating capacity on a single standard track width of 450mm (17.7"). At 10,515 lbs with 4.2 psi ground pressure, it's built for maximum production earthmoving, site development, and heavy material handling.
What's Inside the Track
| Component | Specification | Why It Matters |
|---|---|---|
| Iron Cores | Drop-forged steel embeds · pitch-spaced | Maintain track shape · resist deformation under load · engage sprocket cleanly |
| Steel Cords | Acid-washed · continuous cord layer | Carry tensile load · prevent stretching · hold pitch dimension over time |
| Rubber Compound | Non-marking white rubber · premium compound | Won't leave black marks on finished surfaces · same durability as standard |
| Non-Marking Split Bar Tread | White rubber compound, no black marks | Split bar pattern for bidirectional traction. Premium compound for sensitive surfaces. |
| Lug Height | ~1" nominal new depth | Replace when worn below ⅓ remaining — traction loss accelerates past that point |
Track Dimensions
| Size | Width | Pitch | Links | SKU |
|---|---|---|---|---|
| 450mm Width (450×86×55) | 450mm (17.7") | 86mm | 55 | B450x86x55NMSB-BTT770 |
All Tread Patterns Available for the T770
Sold individually. Free shipping.
