Product Description
Track Width
- Fits all Bobcat T740 undercarriages
- SKU: B450X86X55C-BTT740

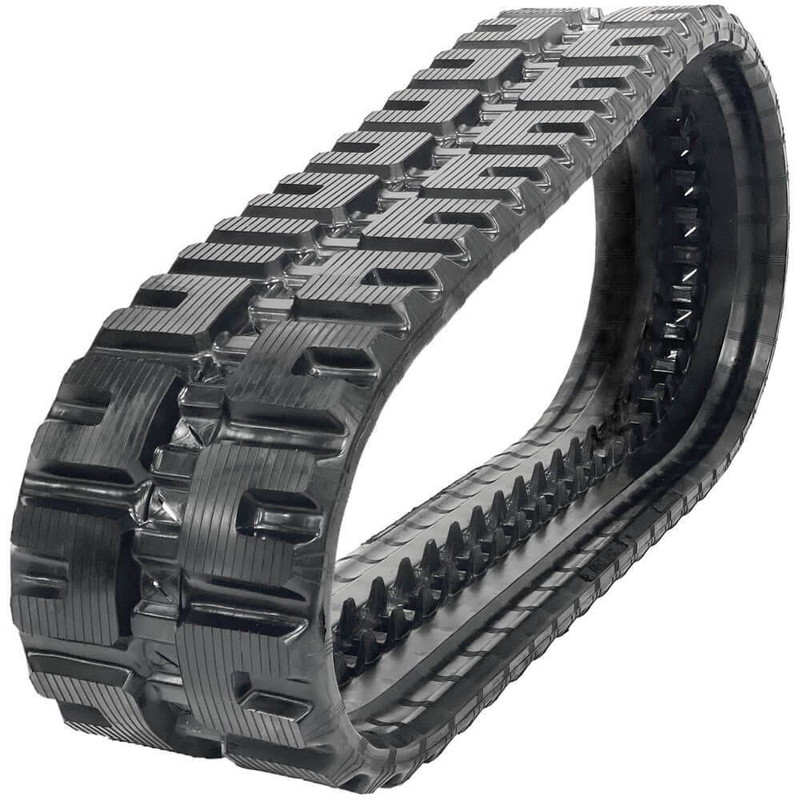

C-Lug Tread — Is It Right for Your Work?
| Pattern | Best Used For |
|---|---|
| Bar | Flat terrain · large ground contact · stability on firm surfaces |
| Block | General purpose · hardpack · dirt · long pavement runs |
| C-Lug ✔ | Mixed terrain · grading · site work · on/off road · concrete & dirt |
| Split Bar | Bidirectional traction · shock absorption · smooth ride on varied ground |
| Turf | Lawns · landscaping · minimal ground disturbance |
| Z-Lug | Steep grades · snow · ice · maximum traction applications |
Non-marking white rubber also available. See non-marking options →
The C-Lug is the most versatile pattern for operators doing mixed work — think landscaping, excavation, building sites, and utility work where you're moving between gravel, dirt, and pavement. The "C" shaped notches create more edges than a block tread, giving better traction on softer ground without sacrificing the smooth ride needed on concrete. See all available patterns at the bottom of this page.
Know Your Machine: Bobcat T740 Undercarriage Facts
The T740 is a large-frame Bobcat CTL with a 3,200 lb rated operating capacity on a single standard track width of 450mm (17.7"). At 10,127 lbs with 4.2 psi ground pressure, it delivers serious production lifting and pushing on a wide, stable footprint. The 450mm is the factory-standard width — optimized for the T740's capacity at lower ground pressure than narrower-track competitors. Here's what that means for your track purchase:
What's Inside the Track
| Component | Specification | Why It Matters |
|---|---|---|
| Iron Cores | Drop-forged steel embeds · pitch-spaced | Maintain track shape · resist deformation under load · engage sprocket cleanly |
| Steel Cords | Acid-washed · continuous cord layer | Carry tensile load · prevent stretching · hold pitch dimension over time |
| Rubber Compound | Wear-resistant · premium bonding agent | Protects cords from moisture · bonds all layers · absorbs impact on hard surfaces |
| C-Lug Tread | C-shaped notches create more biting edges than block or bar patterns | Self-cleaning in mud. Smooth on pavement. |
| Lug Height | ~1" nominal new depth | Replace when worn below ⅓ remaining — traction loss accelerates past that point |
Is It Time to Replace Your T740's Tracks?
| What You're Seeing | What It Means | Action |
|---|---|---|
| Exposed steel cords | Carcass worn through — moisture will corrode cords | Replace immediately |
| Flat or missing lugs | Tread depth below ⅓ of original 1" — traction loss | Plan replacement soon |
| Track won't hold tension | Carcass has stretched beyond adjuster range | Replace track · inspect adjuster |
| Cracks around guide bars | Aging rubber · UV damage · abrasive turning | Monitor closely, plan replacement |
| Track jumping off | Tension too loose OR guide bar/idler damage | Check tension first · inspect guide bars |
At 10,127 lbs operating weight the T740 accelerates track wear faster than lighter machines. On abrasive surfaces (concrete, asphalt), expect 1,200–1,500 hours from quality replacement tracks. Soft-ground or dirt-only work can extend this considerably.
Track Dimensions
| Size | Width | Pitch | Links | SKU |
|---|---|---|---|---|
| 450mm Width (450×86×55) | 450mm (17.7") | 86mm | 55 | B450X86X55C-BTT740 |
Complete Your T740 Undercarriage
Replacing tracks? Consider replacing your sprockets at the same time — worn sprockets destroy new tracks. All parts below are confirmed to fit the Bobcat T740.
All Tread Patterns Available for the T740
Sold individually. Free shipping.
