Product Description
Which Width Is Right for Your T200?
- Factory-installed width on most T200s
- Lower tension on rollers → longer undercarriage life
- Best for hard surfaces: concrete, asphalt, packed gravel
- Better maneuverability in tight spaces
- SKU: B320X86X52B-BTT200
- Distributes T200's 8,080 lbs weight over a larger footprint
- Reduces psi → less lawn & turf damage
- Ideal for soft/wet ground, mud, landscaping work
- Larger footprint absorbs more impact — softer ride on rough terrain
- SKU: B450X86X52B-BTT200
Not sure which to choose? Most T200s leave the factory with 320mm tracks, but all widths install on the same undercarriage without modification. Or just call us at 800-966-6640 and tell us your machine — we'll match you in 30 seconds.
Block Tread — Is It Right for Your Work?
| Pattern | Best Used For |
|---|---|
| Bar | Flat terrain · large ground contact · stability on firm surfaces |
| Block ✔ | General purpose · hardpack · dirt · long pavement runs |

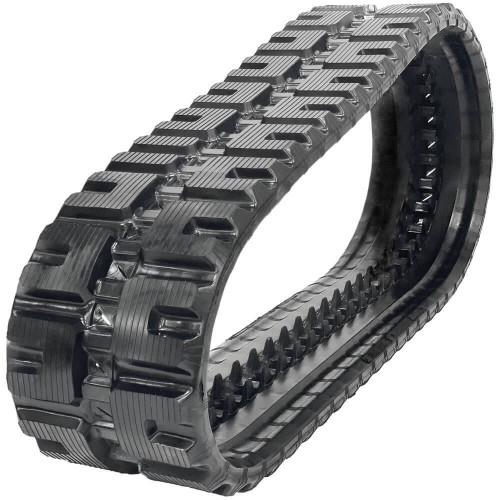

| C-Lug | Mixed terrain · grading · site work · on/off road · concrete & dirt |
| Q-Tread | Multi-directional traction · good all-around performance |
| Split Bar | Bidirectional traction · shock absorption · smooth ride on varied ground |
| Turf | Lawns · landscaping · minimal ground disturbance |
| Z-Lug | Steep grades · snow · ice · maximum traction applications |
Non-marking white rubber also available. See non-marking options →

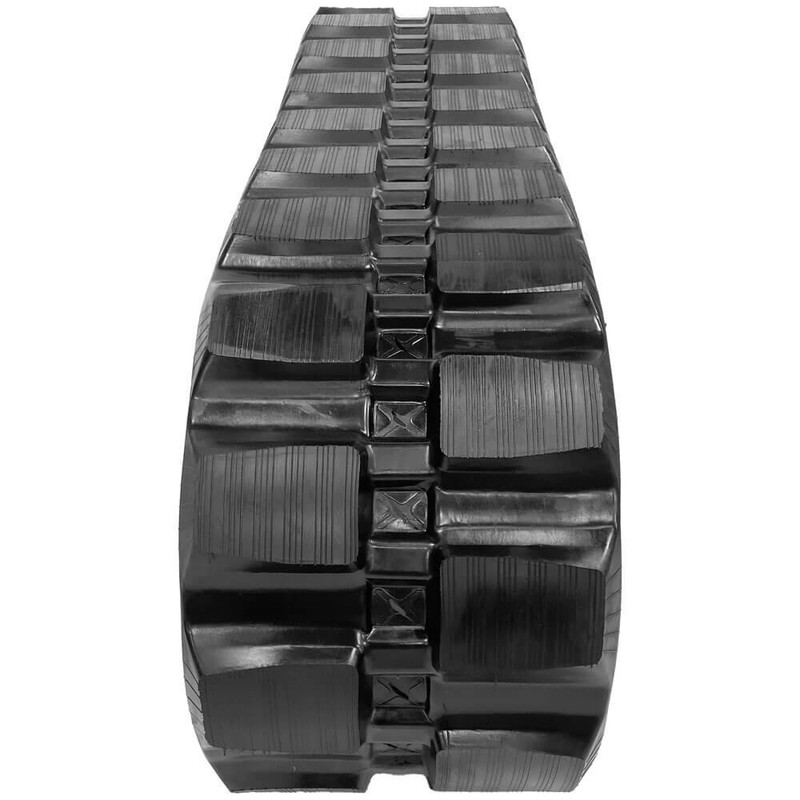

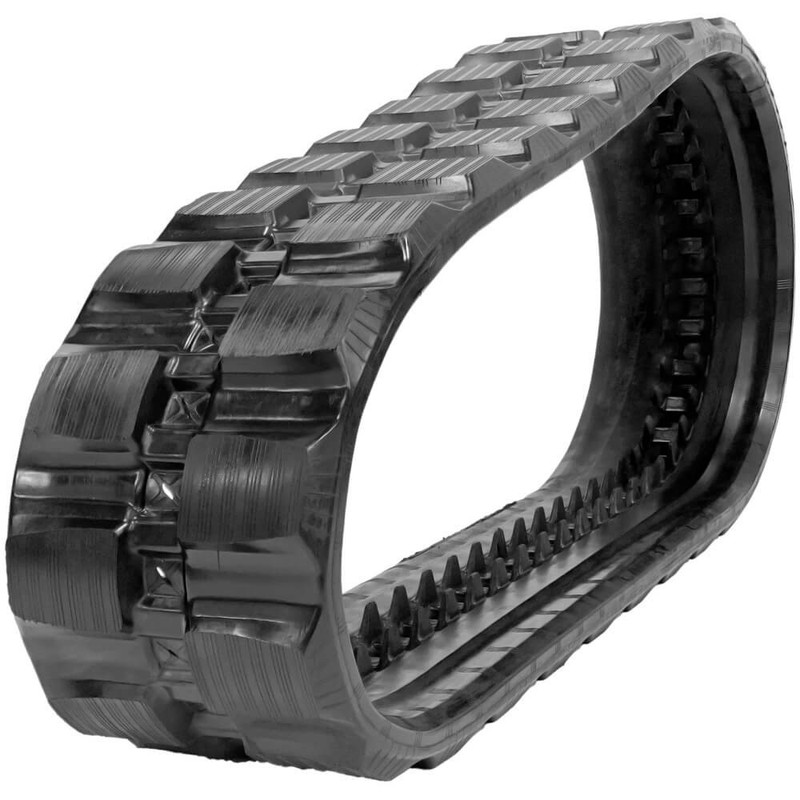

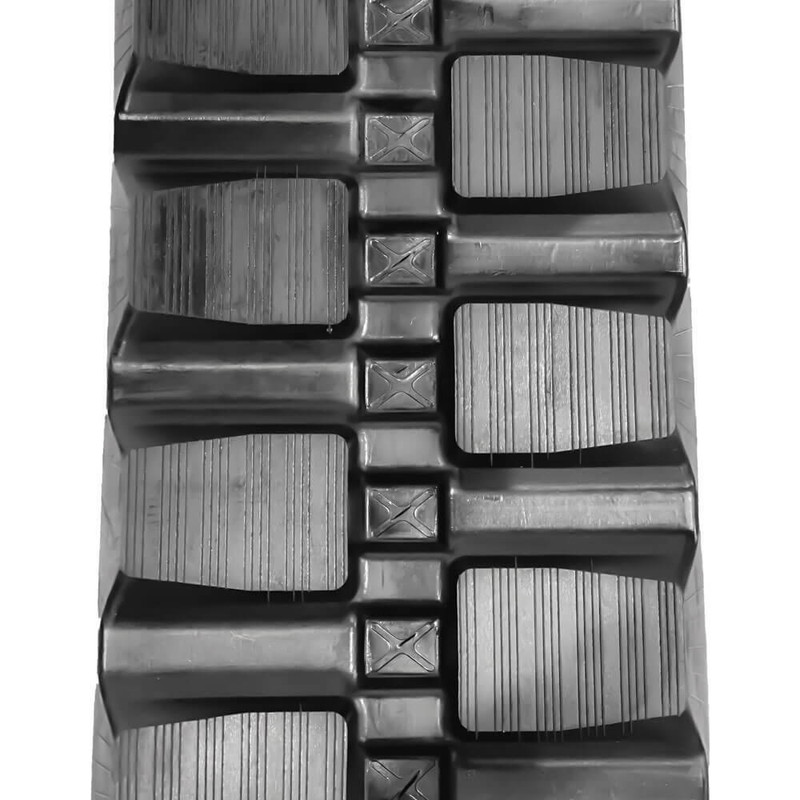

The Block pattern is the go-to for operators who spend most of their time on firm, packed surfaces — hardpack dirt, gravel roads, concrete, and asphalt. The flat block tread wears evenly on hard surfaces and delivers a smoother ride on pavement than aggressive lug patterns. A solid all-around choice when you're not dealing with mud or steep slopes. See all available patterns at the bottom of this page.
Know Your Machine: Bobcat T200 Undercarriage Facts
The T200 is a larger-frame Bobcat CTL with a 2,000 lb rated operating capacity and two track width options — 320mm (12.6") and 450mm (17.7"). At 8,080 lbs with 5.2 psi on standard 320mm tracks, it delivers serious lifting and pushing capacity for site prep, loading, and earthmoving. The wide 450mm track option significantly reduces ground pressure for soft-ground applications. Here's what that means for your track purchase:
What's Inside the Track
| Component | Specification | Why It Matters |
|---|---|---|
| Iron Cores | Drop-forged steel embeds · pitch-spaced | Maintain track shape · resist deformation under load · engage sprocket cleanly |
| Steel Cords | Acid-washed · continuous cord layer | Carry tensile load · prevent stretching · hold pitch dimension over time |
| Rubber Compound | Wear-resistant · premium bonding agent | Protects cords from moisture · bonds all layers · absorbs impact on hard surfaces |
| Block Tread | Flat block profile wears evenly on hard surfaces | Smooth ride on pavement. Less aggressive in soft ground. |
| Lug Height | ~1" nominal new depth | Replace when worn below ⅓ remaining — traction loss accelerates past that point |
Is It Time to Replace Your T200's Tracks?
| What You're Seeing | What It Means | Action |
|---|---|---|
| Exposed steel cords | Carcass worn through — moisture will corrode cords | Replace immediately |
| Flat or missing lugs | Tread depth below ⅓ of original 1" — traction loss | Plan replacement soon |
| Track won't hold tension | Carcass has stretched beyond adjuster range | Replace track · inspect adjuster |
| Cracks around guide bars | Aging rubber · UV damage · abrasive turning | Monitor closely, plan replacement |
| Track jumping off | Tension too loose OR guide bar/idler damage | Check tension first · inspect guide bars |
At 8,080 lbs operating weight the T200 accelerates track wear faster than lighter machines. On abrasive surfaces (concrete, asphalt), expect 1,200–1,500 hours from quality replacement tracks. Soft-ground or dirt-only work can extend this considerably.
Track Dimensions
| Size | Width | Pitch | Links | SKU |
|---|---|---|---|---|
| 320mm Width (320×86×52) | 320mm (12.6") | 86mm | 52 | B320X86X52B-BTT200 |
| 450mm Width (450×86×52) | 450mm (17.7") | 86mm | 52 | B450X86X52B-BTT200 |
All Tread Patterns Available for the T200
All patterns fit all available widths. Sold individually. Free shipping.
